Around View Monitoring (AVM)
ArcSoft AVM products support 360° surrounding view plus 180° underneath view, combined to form a 540° bird’s eye view (BEV) of the surrounding area. Based on the high degree cross-platform adaptations, ArcSoft 540° panoramic in-vehicle solution is achieved through deep integration and optimization with the platforms for successful reductions of CPU, GPU, and other resource consumptions.
ArcSoft AVM products support the following functions:
Seamless stitching with color balancing and distortion correction;
2D aerial, 2D single view, and wide-angle view;
Normal 3D view, 3D transparent chassis view, and 3D front or rear trunk view;
Corner object indicator and blind spot following;
Self calibration, and adaptive multi-pattern calibration.
Supports
Qualcomm (SA8155P, SA8295P, SA8775P, SM8475, SM7325, SA8620P, SA8650P etc)
MTK (MT8666, MT2712, MT8678 etc)
Siengine (SE1000 etc)
TI (TDA4 etc)
Operating Systems
Android, Linux, QNX.
Camera locations
Around the body, at the front, rear, left and right.
Sensors
Support RGB sensors from 1M up.
Auto-Parking Assist (APA)
ArcSoft Auto-Parking Assist (APA) system is a cost-effective APA solution for the OEMs that utilizes existing computing resources on a single IVI or ADAS SoC and the AVM/APA cameras.
Using the existing AVM cameras, ArcSoft APA perception algorithms detect precise object locations and free parking spaces. Based on the perception results, ArcSoft APA solutions provide stable planning and control capabilities that can handle complex parking scenarios such as dead-end roads and multi-layer mechanical parking spaces, with robust performance. ArcSoft APA solutions adapt to various environmental elements, including parking spaces, corner parking spots, adjacent vehicles, cones, sidewalks, barriers, walls, pillars, curbs, and more.

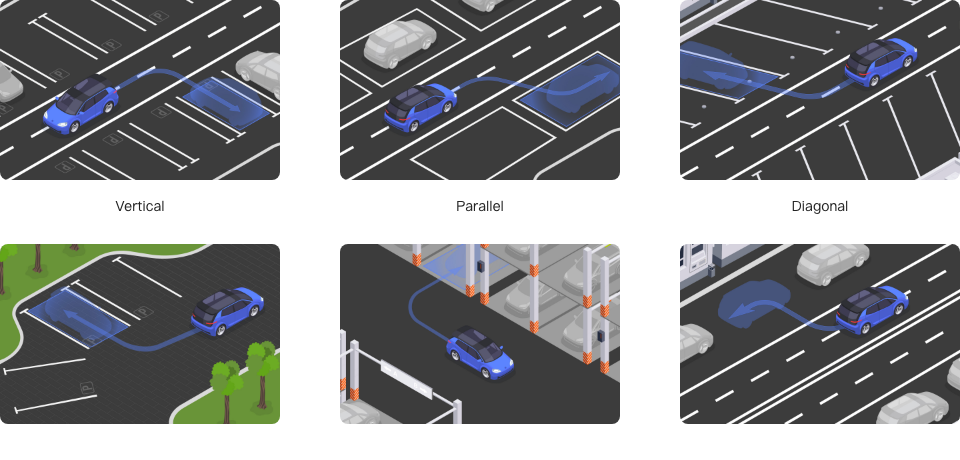

6+ parking configurations
Supports
TI (TDA4 etc)
Qualcomm (SA8155P, SA8255P, SA8295P, SA8775P, SA8620P, SA8650P etc)
Operating Systems
Linux, QNX.
Camera locations
Around the body, at the front, rear, left and right.
Sensors
Support RGB sensors from 1.5M up.
Home-zone Parking Assist (HPA)
ArcSoft Home-zone Parking Assist (HPA) is an extension feature of APA.
Similar to the APA system, but with an additional front facing ADAS camera, ArcSoft Home-zone Parking Assist (HPA) system is also a cost-effective solution for the OEMs that utilizes existing computing resources on a single IVI or ADAS SoC, the front facing ADAS camera, and the AVM/APA cameras.

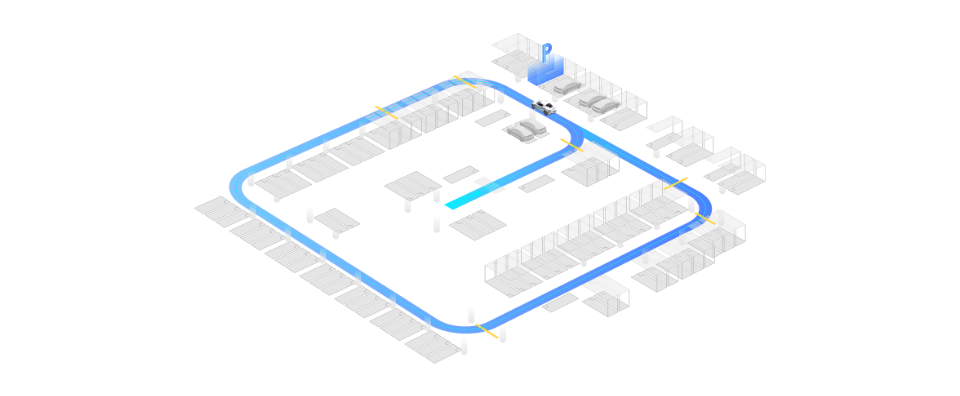

Many people enter and exit the same parking places repetitly every day. ArcSoft HPA helps to automate this task without the driver's intervention. The driver can activate the learn-to-park process and drives the car to the desired parking spot once. The HPA system remembers the route, with proper start point and end point. When the car reaches the start position again, the HPA system takes on the parking maneuver into the proper parking space without the driver. ArcSoft HPA can adapt to various environmental elements, including parking spaces, corner parking spots, adjacent vehicles, cones, sidewalks, barriers, walls, pillars, curbs, and more.
Supports
TI (TDA4 etc)
Qualcomm (SA8155P, SA8295P, SA8775P, SA8620P, SA8650P etc)
Operating Systems
Linux, QNX.
Camera locations
Around the body, at the front, rear, left and right.
Sensors
Support RGB sensors from 1M up.

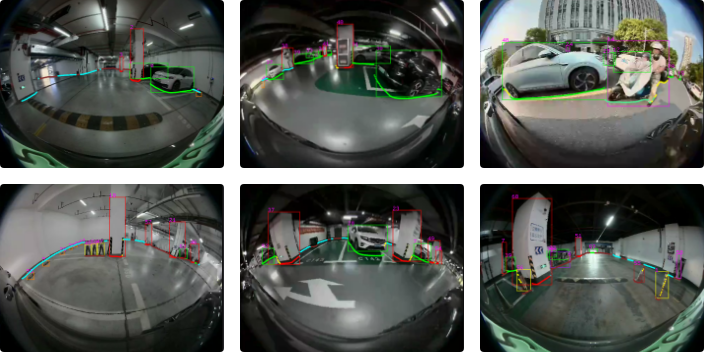

16+ objects sensing
Static objects
columns
construction cones
car locks
no-parking
water barriers
guardrails
car wheel stopper
bumps
warning signs
stone blocks
…
Dynamic objects
vehicles
pedestrians
bicycles/motorcycles
baby carriers
shopping carts
pets
…
Sentry Mode
ArcSoft Sentry Mode is an AVM camera based visual solution to detect suspicious behaviors that may cause damages to the cars that are parked. Sentry Mode runs on a single IVI SoC, reusing the existing computation resources and AVM cameras.
Sentry mode is mainly divided into three stages: monitoring, alerting, and tracing.
Monitoring: After turning off the engine, if Sentry Mode is activated. In standby state, the 4 AVM cameras continuously monitor risks around the vehicle.
Alerting: If Sentry Mode detects a risk, such as someone wandering around the car in a very close distance, Sentry Mode switches to Alert state, the headlights flash, and the touchscreen displays a message indicating that the camera is recording.
Tracing: After the owner gets into the car, he/she can review the recorded video to trace the time and cause of the alert.
ArcSoft Sentry Mode solution can be activated with different sensing options and has the advantages of high accuracy and low power consumption. It supports pedestrian detection, automobile detection, bicycle and motorized bike detection, and detection of various objects such as shopping carts.
Supports
Qualcomm (SA8155P, SA8295P, SA8775P, SM8475, SM7325 etc)
MTK (MT8666, MT2712, MT8678 etc)
Siengine (SE1000 etc)
Camera locations
Reuse AVM cameras.
Sensors
Support RGB sensors from 1M up.
